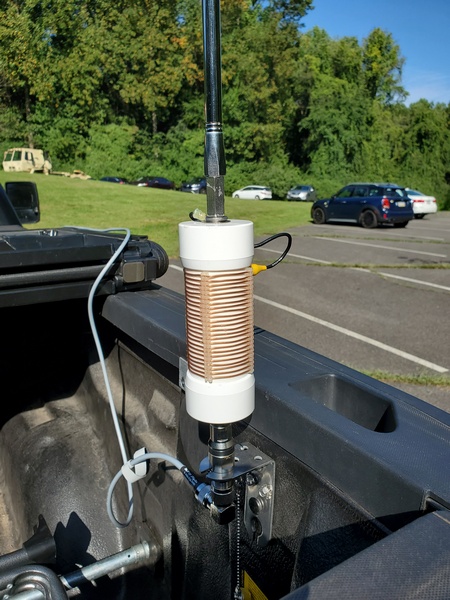

I built a new loading coil to use with my MFJ-1956 12-foot telescopic whip. This is a scaled-down version of the old one I had been using. But, more on that in a separate post. Anyway, I was dying to see how it worked, so I drove down to Ridley Creek State Park (K-1414, KFF-1414) to put it on the air.
When I rolled into the parking lot, I was surprised to see a large military truck there. As I drove around the loop, I saw about a dozen soldiers in a field. Two of them were carrying a stretcher back into the woods. No, the park wasn’t under attack. It appeared to be some reservists going through a training exercise.
I deployed the new antenna configuration in a minute or two. Before I got on the air, I hooked up my antenna analyzer to confirm that I could tune it up on each band from 40M through 17M. Success! I used a Sharpie® pen to mark the coil tap locations for each band.
My rig today was my trusty TR-35 (5 watts). I started out on 40M: and, after spotting myself, the calls started rolling in. I made the requisite 10 contacts in about eight minutes. After making 23 contacts on 40M, I moved up to 20M.
There was also lots of action on 20M. One caller was W6LEN in California. It’s been a while since I worked Jess, so it was good to hear him again. Jess spotted me for the WWFF folks, and I soon started receiving calls from DX stations. I logged contacts with Puerto Rico, Italy, France, and Poland.
After exactly an hour of operating, I had 42 contacts, with four park-to-park contacts I’m aware of. Throwing in the DX contacts, this was one of the better activations I’ve had lately.
I’m hesitant to attribute today’s success to my shortened, base-loaded whip; but this thing seems to have some kind of mojo. I’ll do a separate post on the coil and how I put it together.
73, Craig WB3GCK
I built my own loading coil too Craig, but yours looks much more elegant than mine. I look forward to reading your account of how you made it.
LikeLike
Hi Craig,
I’d love to hear more about the build of the loading coil.
Cheers,
Chris.
2e0xch.
LikeLike
Hi Chris. I’m in the process of writing it up. I should have it posted later this week. — Craig
LikeLike
