Revisiting the Rybakov 806 Vertical

Some recent Internet discussion got me thinking about the Rybakov 806 Vertical antenna. This easy-to-build antenna has served me well over the years. So, I went back and revisited some of the ways I’ve used it.

What the heck is a Rybakov anyway?

The Rybakov 806 Vertical appears to be the brainchild of Enrico IV3SBE from Italy (now 5Z4ES in Kenya). The term, Rybakov, is Russian for “fisherman.” That’s right… It’s an antenna with a Russian name designed by an Italian who lives in Africa — truly an international creation. From what I could glean from exhaustive Internet searches, this design dates back to the mid to late 2000s. I found numerous references to it from 2009.

The classic Rybakov configuration is a 7.6m or 8m (~25 or 26 feet) wire fed through a 4:1 UNUN. The length isn’t critical, as long as you avoid resonance on the bands of interest. It’s often supported by a telescopic fishing pole (hence, the name, “Rybakov”). Being a non-resonant antenna, you need to use an antenna tuner to make it work. You also need to use radials or some other type of ground.

The antenna can cover 80M through 6M (the “806” part of its name, I suppose). The band coverage depends on the wire length used and the capabilities of your tuner. With a 7.6M wire, you can cover 40M and up without problems. For 80M coverage, plan on using a longer radiator.

The only thing you need to build is the 4:1 UNUN. The IW7EEHC website provides detailed instructions for building one. Beyond that, you just need to cut some wire to length for the radiator and radials. Easy peasy!

My experience with the Rybakov

I had been using this type of antenna before I even knew it had a name. Rick KC8AON had a version of this type of antenna he called, “The Untenna.” That’s where I found it.

My first experiment with it was in a “stationary mobile” setup. I rigged up a 26-foot vertical wire and grounded the UNUN to the body of my truck. My Z-817 tuner was able to load it up with no difficulty. I had no problem making contacts and I liked the multi-band coverage.

I next used the Rybakov at a Boschveldt QRP Club Field Day. I set up a 26-foot ground-mounted vertical and used about six 16-foot radials with it. Again, the performance seemed decent and I remember doing well on 10M that year. The only shortcoming was that it wouldn’t load up on 80M.

The next year, I solved the 80M problem by using a 50-foot wire in an inverted L configuration. For the ground, I used six 16-foot radials and two 33-foot radials. This configuration gave me full coverage from 80M to 10M and it worked great. This antenna configuration became my “go to” Field Day for several years. In later years, I used a 53-foot radiator.

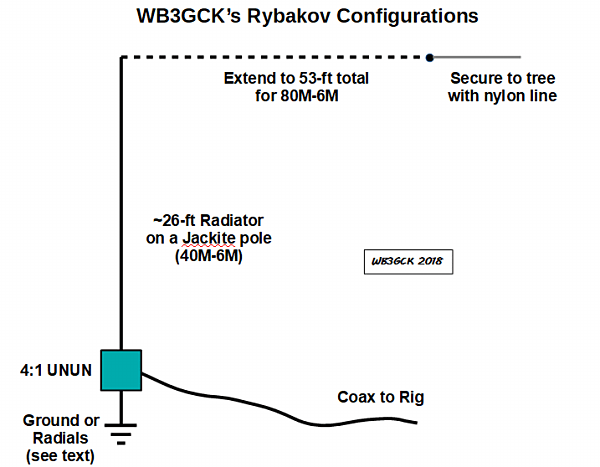

My typical implementation of the Rybakov 806 antenna. A length of 25 to 27 feet does well from 40M and up. I go with a 53-foot radiator for 80M coverage.
My typical implementation of the Rybakov 806 antenna. A length of 25 to 27 feet does well from 40M and up. I go with a 53-foot radiator for 80M coverage.

I used another version of the Rybakov with the pop-up camper that I used to own. I strapped a 31-foot Jackite pole to the camper and used it to support a 27-foot wire. I grounded the UNUN to the body of the camper. This antenna worked great on 40M to 6M and, best of all, I didn’t need to go outside at night to change bands. I used this antenna with good results for several years until I sold the camper.

I also built a Rybakov that I use as a backup antenna in the field. I built a small 4:1 UNUN that I use with a 26.5-foot radiator and a 26.5-foot radial. The antenna, along with a short length of coax, is easy to carry in my pack.

The bottom line (for me, at least)

I’ve had good luck with the Rybakov Vertical over the years. Is it the best antenna? Nope. Purists will argue about UNUN, ground, and coax mismatch losses. Yep, there are those. Yet, its simplicity and “no gap” band coverage are hard to beat. It’s easy to deploy in the field and it really does work.

If you’re in the market for a simple portable antenna project, the Rybakov 806 is an easy one.

[Update 4/3/2019: I’ve always wondered about the rationale behind the 25-foot radiator often used with the Rybakov antenna. An article in QST [1] by Joe Reisert W1JR shed some light on that for me. Joe’s article discusses the 3/8-wave vertical antenna. According to the article, the 3/8-wave antenna has a low take-off angle and its 200-ohm feedpoint is easily matched with a 4:1 transformer. Its higher radiation impedance provides good performance with just four 1/4-wave radials. For 20M, a 3/8-wave radiator is about 25-ft. Similarly, for 40M, it would be 50-feet. So, my guess is that’s the concept behind the Rybakov design.]

73, Craig WB3GCK
