One of my favorite ways to use my Gabil GRA-7350TC antenna is on a picnic table within arm’s reach for easy adjustment. It’s a configuration I wrote about in a previous post. I wanted to try something similar using my Elecraft KH1, but with a minor twist.

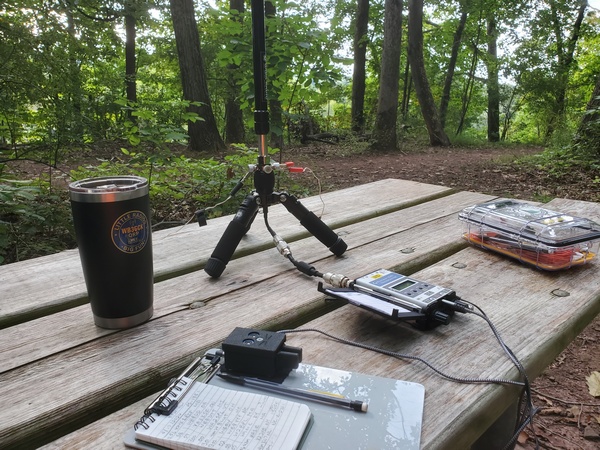

What I had in mind was using the Gabil antenna on its tripod with most of the coax eliminated. To do this, I used a Gabil common-mode choke between the antenna and the KH1. Besides helping to keep RF off the shield, it also provided a little extra coax length. This makes it a little easier to connect to the radio.
I had most of what I needed, except for an adapter to go from the choke to the radio’s antenna input. After scouring through my collection of connectors and adapters, I found what I needed: a PL-259 to BNC-M adapter. These aren’t very common, but I had acquired one somewhere along the way.
Now, I just needed a picnic table. For that, I headed to Evansburg State Park (US-1351, KFF-1351). I set up my Gabil antenna at a picnic table I’ve used several times before. I attached two 17-foot radials, which I laid on the ground. Using an SWR meter, I quickly tuned the antenna for an SWR of 1.3:1 on 40M. I swapped out the SWR meter for my KH1 and got on the air.
After spotting myself, I logged my first 10 contacts in about nine minutes. Not bad for 3.5 watts to an eight-foot vertical. I hunted a couple of park-to-park contacts before moving up to 20M. I tuned around the band, and it seemed somewhat quiet. I called CQ a few times before getting a call from a very loud F4WBN. Right after that, I worked a station in Texas. Then the activity came to a screeching halt. My guess is that it was a little too early in the morning for 20M.
After spending more time on 20M than I should have, I went back down to 40M and picked up a couple more park-to-park contacts. I logged several more contacts after that before packing up. My one-hour effort netted 24 contacts, including five that were park-to-park.
My Gabil is an early version with scale markings applied with a sticker, rather than the engraved markings on the newer ones. I’ve already experienced a little peeling, so I wanted to add some band markings of my own. My plan was to use a Sharpie to mark the coil settings. I figured if I forgot to pack an SWR meter, I could at least get the antenna close enough for the KH1’s internal ATU to handle. It was a brilliant plan, except that I forgot to bring the pen. Doh! (Note to self: Add a Sharpie to the backpack.)
All-in-all, the Gabil proved its worth once again. It’s quick to setup, gets the job done, and it packs down small.
72, Craig WB3GCK
