MFJ-1820T Whip

I made an impulse buy this week. After reading an old Elecraft mailing list post from Wayne Burdick N6KR where he made a strong recommendation, I ordered an MFJ-1820T whip antenna. I need another portable antenna like I need a hole in the head but I figured it might be fun to give this little whip antenna a try.

If you aren’t familiar with it, the MFJ-1820T is a 4-foot, telescopic, loaded whip for the 20M band. It collapses down to a tiny 10-inches. It will handle 25 watts but my whip will never see that much power. It sells for around $30 (U.S.).  Wayne recommended using at least one 13-foot radial with it. I went with two 13-foot radials made from some cheap speaker wire I had on hand.

MFJ-1820T Collapsed
MFJ-1820T Collapsed

This morning, while operating from a local park, I connected the whip to my KX3 with a BNC right angle adapter. I connected my radials to one of the knurled nuts on the KX3 with an alligator clip. To keep the whip from swiveling, I used a small, plastic spring clamp.

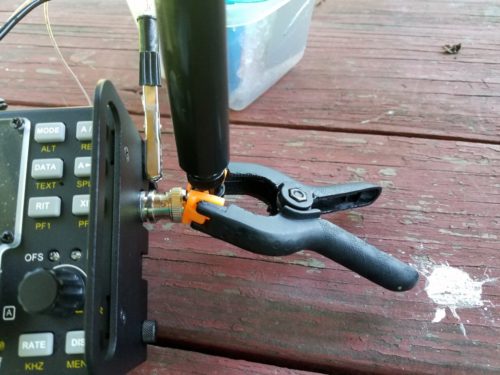

The MFJ-1820T whip connected to my KX3. The plastic spring clamp was used to stabilize the whip. You can also see the alligator clip for the radials.
The MFJ-1820T whip connected to my KX3. The plastic spring clamp was used to stabilize the whip. You can also see the alligator clip for the radials.

The KX3’s internal tuner loaded up the whip with no problems. I heard W8SVC calling CQ from Michigan and gave him a call with 5 watts. He got my callsign on the first call but he wasn’t sure he had copied it correctly. I upped my power to 10 watts (gasp!) and called again. He gave me a 559 and we exchanged our basic information. Unfortunately, I lost him when the band faded.

Moving up to the 20M QRP calling frequency, I called CQ a couple of times. AA8WQ (QRP at 5W) responded from Ohio and gave me a 569 report. Again, we were able to exchange our basic info before I lost him completely.

Frankly, I wasn’t really expected much from a 4-foot whip but I was surprised that I was able to make two contacts this morning. It certainly isn’t the best antenna for 20M but, when the band is in good shape and you need something that sets up in an instant, the MFJ-1820T is certainly a usable antenna. I’ll probably be carrying the MFJ-1820T in the field as a backup antenna.

72, Craig WB3GCK
