Doublets I Have Known and Loved

In a recent post, I covered some (very) basic information about the venerable doublet antenna. This time around, I’ll cover some practical examples. These are antennas I have used and one unique design I know of.

Doublet Fed with TV Twinlead

My go-to portable antenna for several years was a simple doublet fed with 25 feet of that cheap, brown TV twin-lead. For the radiating elements, I used some #22 stranded hookup wire.

I first built the antenna as a 40M dipole fed with RG-174 coax. After a while, I wanted to cover multiple bands, so I removed the coax and replaced it with the twin-lead. I used a small piece of fiberglass perf board for the center insulator.

I have often used my homebrew Z-match tuner to load it up, although a 4:1 balun and a short run of coax to my rig’s internal tuner works fine, too. The whole antenna weighs next to nothing, and fits in a sandwich-sized Ziplock® bag.

Nothing fancy but it works great.

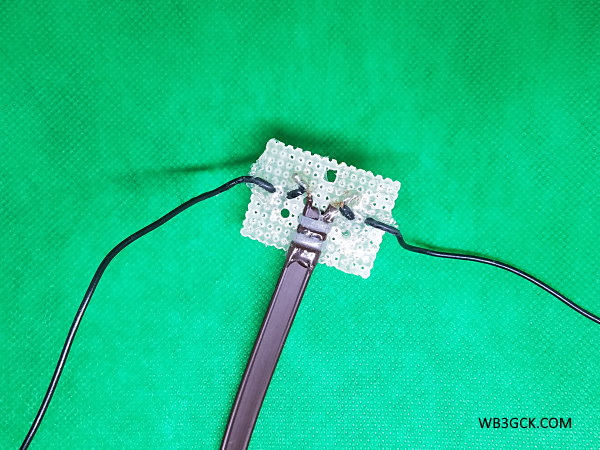

This is the center connector for my 66-foot doublet. The feedline is the old, cheap TV twin-lead.
This is the center connector for my 66-foot doublet. The feedline is the old, cheap TV twin-lead.

Up and Outer

The Up and Outer is simply a doublet with one vertical leg and one horizontal leg. I had done some experimenting with this old-time antenna and decided to build one to use while on vacation in the Outer Banks of North Carolina.

I planned to support the vertical leg with a 28-foot Jackite pole, so I made a simple modification to a 44-foot doublet I had on the shelf. I spliced 6 feet of additional wire to each of the elements down to 28 feet each, and I was in business. Like my 40M doublet, the Up and Outer is fed with TV twin-lead and uses a perf board center insulator.

This antenna always goes with me on our annual Outer Banks vacation. I’ve used it from numerous beach rental houses, and it’s perfect for use on a second story deck. I used it last summer with great results, connecting it directly to my KX3. And, if I need to, I can use it as a normal horizontal doublet.

Appalachian Trail (AT) Dipole

This design is the brainchild of my friend, Ed Breneiser WA3WSJ, and goes back about 20 years. Rich Arland K7SZ, wrote about it in his QRP column in QST [1] back in 2001 and devoted a few pages to it in one of his books [2].

In simplest terms, it’s a 40M doublet made from #26 copper-clad stealth wire. Ed used a 3/4-inch PVC end cap for the center insulator (see photo). After soldering wires to an SO-239 socket and routing the wires through the end cap, the inside of the end cap is potted with epoxy. This makes it pretty much bomb-proof.

The antenna is fed with 300-ohm ladder line, which is soldered to a PL-259 UHF connector. The PL-259 probably causes a slight imbalance, but in the field, you’ll never notice it. You can also feed it with coax and use it as a normal 40M dipole. Pretty cool, huh?

When I built mine, I went with some #22 stranded hookup wire I had on hand. Although I departed from Ed’s design a bit, this doublet has been a reliable portable antenna over the years.

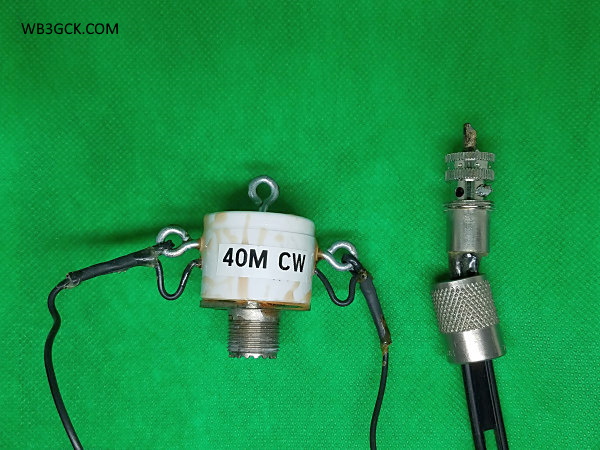

My version of the WA3WSJ AT Dipole. The discoloration on the PVC end cap is from a mishap I had while potting it with epoxy. On the right is a PL-259 connector used with 300-ohm ladder line. As you can probably tell, this antenna has seen years of heavy use.
My version of the WA3WSJ AT Dipole. The discoloration on the PVC end cap is from a mishap I had while potting it with epoxy. On the right is a PL-259 connector used with 300-ohm ladder line. As you can probably tell, this antenna has seen years of heavy use.

WV0H Park Doublet

Myron WV0H designed a unique doublet that he dubbed The WVØH Park Portable DoubletHe uses two 50-foot pieces of wire to create a 60-foot doublet fed with a built-in open-wire feeder. I won’t attempt to offer a detailed description here; Myron’s blog post provides all the details you need to build one. Go check it out.

While I’ve never used Myron’s unique antenna, I can vouch that it works. I worked Myron a few years back while he was out in a park with his doublet. I can attest that it puts out a great QRP signal.

Wrap-Up

Well, that’s about it. If you need a reliable, easy-to-build, multi-band antenna, give the time-tested doublet a try.

73, Craig WB3GCK

References:
[1] Arland, R. (2001, July). QRP Power – Antenna Time. QST, p. 100.
[2] Arland, Richard K7SZ, Low Power Communication – The Art and Science of QRP, The American Radio Relay League, 2nd Edition, 2004, Chapter 6, pp. 6-36, 6-37

The Doublet – Revisiting a Classic Antenna

I was recently going through my stash of portable wire antennas and came across one of my old favorites—the doublet. I don’t see too many references to this type of antenna these days, but the doublet provides a great portable antenna option.

What is it?

The doublet, simply put, is just a dipole. The difference is that you feed it with a balanced feeder, rather than coax.

Hams have been using doublets for many years. The earliest reference I could find in the ARRL QST archives was from September of 1929.[1] In this write-up, Clair Foster W6HM describes a 40M doublet fed with twisted wire lamp cord used for receiving.

Advantages of the Doublet

The balanced feeder provides some advantages. Depending on how it’s constructed, it can withstand higher SWR with lower losses than coax. Because of the low losses at high SWR, you can use the doublet as a multi-band antenna.

As a portable antenna, it’s hard to beat, especially as an inverted vee. Use a tree branch or telescopic pole to hoist up the center, tie off the ends, and you’re in business. [2]

Some Disadvantages

This multi-band capability comes with some disadvantages, though. Fortunately, none of them are insurmountable.

First, you’ll need a transmatch that can handle balanced feedlines. Typical commercially-available feedlines have either 300 or 450-ohm characteristic impedances. For open-wire feedlines, the impedance can sometimes be 600 ohms or more.

I’ve had success using a homebrew Z-match tuner. Companies like Pacific Antenna and QRP Guys sell Z-match tuner kits that will handle balanced lines. They offer tuners that are small and light enough for QRP-portable use.

You can also use a balun to transition from the balanced feedline to 50-ohm coax. While this isn’t an optimum approach, it works. Textbooks often recommend a 4:1 balun, and that’s a good starting point. If you go this route, I recommend keeping the coax as short as practical. If you run into matching problems on some bands, try another balun ratio (e.g., 1:1), or change the length of your feedline.

The second drawback is that you need to be careful of how you route balanced lines. You need to avoid getting it too close to metal or laying it on the ground. Both can upset the line’s balance. This can cause it to radiate or introduce losses. If you have excess line, don’t coil it up. Operating outdoors, I found these restrictions aren’t very difficult to work around; you just need to be mindful of them.

Construction

Building the doublet is pretty simple. Many folks suggest making the doublet a half-wavelength long at the lowest band you intend to use. I’ve built one for 40M and it worked well on 40M and higher. Depending on your tuner, it may also be usable on the next lower band.

L. B. Cebik W4RNL (SK) popularized the 44-foot doublet for 40M-10M. According to Cebik’s analysis, this length produces a more consistent radiation pattern across the bands.

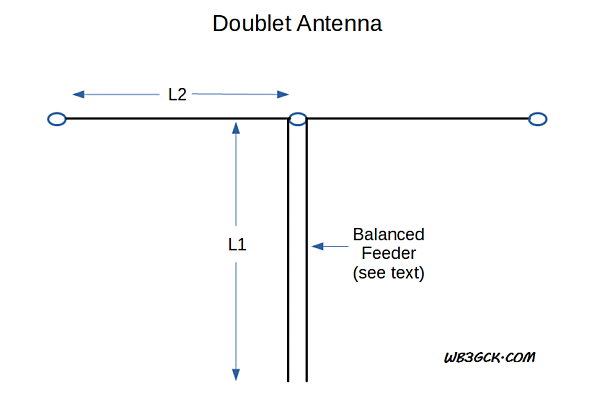

Doublet diagram. One rule-of-thumb suggests avoiding combinations of feedline electrical length (L1) and one leg of the radiator (L2) that are odd multiples of an eighth-wavelength.
Doublet diagram. One rule-of-thumb suggests avoiding combinations of feedline electrical length (L1) and one leg of the radiator (L2) that are odd multiples of an eighth-wavelength.

Regardless of the size of the doublet, you should try to avoid certain feedline lengths. One rule-of-thumb suggests avoiding combinations of feedline electrical length plus one leg of the radiator that are odd multiples of an eighth-wavelength. [3] If you run into matching problems, you can try adjusting the length of either the feedline or the radiating elements.

Feedline Options

You have several options here:

  • Commercial 450-ohm or 300-ohm ladder line. These are commonly available, and they work great.
  • Homebrew open-wire feeders. This is the most efficient option. If you do some Internet searching, you’re likely to find lots of ways to build open-wire feeders. SOTABEAMS has a great example on their website.
  • TV twin-lead. I’ve used the cheap, brown stuff quite a bit for portable doublets. Unfortunately, it’s nearly impossible to find these days. If you come across it somewhere, stock up!
  • Lamp cord or speaker wire. This works and I’ve seen folks use it for portable antennas. However, it can be lossy, compared to window line or open-wire feeders.

More Later

If you want more technical details on this antenna, information abounds on the Internet and in antenna books. In particular, Cebik wrote some great articles that are worth searching for.

In a future post, I’ll cover some practical examples that I have come across or used in the field.

73, Craig WB3GCK

References:
[1] Foster, C. W6HM (1929, September). Experimenters’ Corner: The “Doublet” for Receiving. QST, p. 39.
[2] DeMaw, D. W1FB (1991). Technical Bits & Pieces. In W1FB’s QRP Notebook (2nd Ed., pp. 157–161). Newington, CT: QST.
[3] Heys, John D., G3BDQ (1989). Center-fed antennas using tuned feedlines. In Practical Wire Antennas. Bedford, UK: Radio Society of Great Britain, p 7.

Dollar Store Special

[NOTE: This is an updated version of an old article from my QSL.NET website. In the interest of full disclosure: My local dollar store no longer sells the speaker wire I used. While it’ll probably cost you a few more bucks to build one, it’ll still be a cheap antenna. Although the original article has been on my website for 15 years, I still get the occasional email from folks who have built one.]

I love rummaging through our local dollar store. One of the biggest bargains in our local dollar store is speaker wire. You can get 50 feet of two-conductor speaker wire for a buck. Not too shabby. I always keep a bunch of the stuff on hand for antenna experimentation.

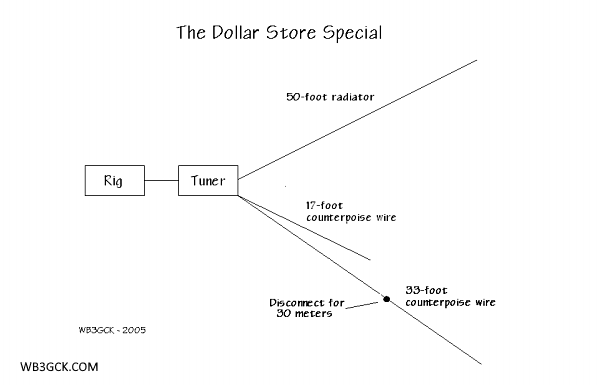

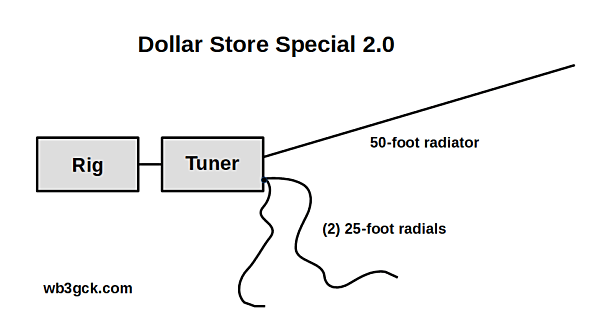

Diagram of the Dollar Store Special. See the text for other counterpoise options.
Diagram of the Dollar Store Special. See the text for other counterpoise/radial options.

Using a single 50-foot roll of dollar store speaker wire, I made a simple 50-foot random wire antenna with counterpoise wires to cover the 40, 30 and 20-meter bands. I stashed the whole kit in a zip-lock sandwich bag and always keep it on hand as a backup antenna system whenever I operate in the field. With a simple antenna tuner of some sort, this will get you on the air in a pinch, should your primary antenna fail.

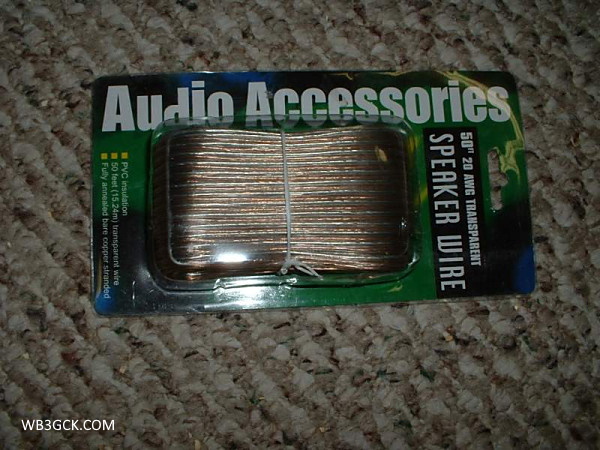

This is the 20 AWG speaker wire I used. Sadly, my local dollar store no longer carries it. I wish I had bought a ton of it while it was available.
This is the 20 AWG speaker wire I used. Sadly, my local dollar store no longer carries it. I wish I had stocked up while it was available.

Here’s all you have to do:

  1. Separate the conductors so that you now have two separate 50-foot wires.
  2. For the radiator, take one of the 50-foot wires and crimp a small ring lug to one end—right over the insulation. This gives you someplace to tie a line to hoist it up. On the other end, just strip off a half-inch or so of the insulation. You can leave it bare or add whatever kind of connector you want; whatever works best with your tuner.
  3. For the counterpoise wires, take the remaining 50-foot wire and cut it so that you have a 33-foot wire and a 17-foot wire. If you only want to work 40 and 20 meters, you can stop right here. You now have counterpoise wires for both of these bands.
  4. To provide a counterpoise wire for 30 meters, take the 33-foot wire from Step #3 and cut it so that you now have a 23-foot wire and a 10-foot wire. Strip off about 1/2-inch of insulation from one end of the 23-foot wire. Install a quick-disconnect connector of some sort on the other end, so that you can join the 23-foot and 10-foot wire sections together. The idea here is that, with the two wires connected, you have a 33-foot counterpoise wire for 40 meters. With the two sections separated, you now have a 23-foot counterpoise wire for 30 meters.

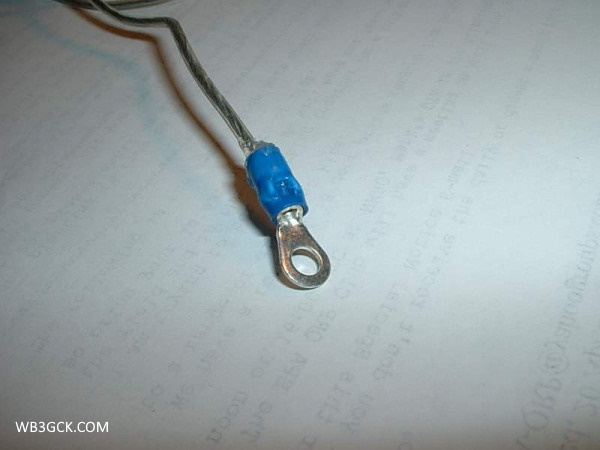

I used a ring terminal to terminate the 50-foot wire. Note that the terminal is crimped over the wire's insulation. The metal ring terminal is electrically-isolated from the antenna wire.
I used a ring terminal to terminate the 50-foot wire. Note that the terminal is crimped over the wire’s insulation. The metal ring terminal is electrically-isolated from the antenna wire.

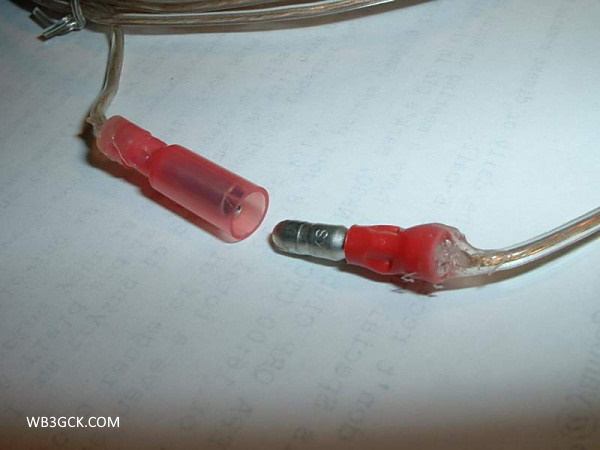

This is the quick-disconnect connector I used on the original version of the counterpoise wire.
This is the quick-disconnect connector I used on the original version of the counterpoise wire. I used some Goop® adhesive to provide some strain relief.

[Note: If you only plan to operate with the radials laying on the ground, cutting them to resonance isn’t too important. You can simplify things a bit by going with just the 33 and 16-foot wires. I think two 25-foot wires would be sufficient, as well. Three 16.6-ft radials is another option to consider. Feel free to experiment here and see what works for you.]

In operation, just hoist one end of the 50-foot radiator up in a tree or other suitable support. Connect the other end to the hot side of your tuner. Connect the 33-foot and 17-foot counterpoise wires to the ground connection on your tuner and lay them out on the ground. When you want to work 30 meters, just disconnect the quick-disconnect on the longer counterpoise wire. Pretty simple, eh? Any type of simple L-tuner should work fine for this.

Please note that I wouldn’t recommend using this wire for a permanent outdoor antenna. It’s not suited for that kind of use. But for temporary outdoor use, it’ll do just fine. Besides, if the wire goes bad, you can always replace the whole thing for a dollar!

73, Craig WB3GCK

©2005-2020 Craig LaBarge WB3GCK

Portable Antenna Ground Mount

Here’s yet another quick little hack. I raided my junk box to cobble together a ground mount for my portable vertical. While this solved a couple of specific issues I had, it might only be of interest to a few of you folks out there.

I often support my 19-foot vertical with one of those inexpensive fishing poles from eBay. (I paid around $10 USD for my 7.2M pole.) I had been using a simple method for ground mounting. I shove a screwdriver in the ground, take the bottom cap off of the pole, and place the pole over the screwdriver. Voila!

While the screwdriver technique is a useful way to support my vertical, there are two issues with it. First, the screwdriver method places the bottom of the pole in direct contact with the dirt. This can gunk up the threads on the bottom of the pole. (Ask me how I know.) Next, since my homebrew 19-foot vertical takes up the entire length of the pole, the matchbox ends up too close to the ground for my liking. I made a simple little gizmo that addresses both of these issues.

Antenna ground mount in use with my 19-foot vertical
Antenna ground mount in use with my 19-foot vertical

From some scraps and junk I had on hand, I used the following:

  • 5 inches of 1/2-inch PVC pipe
  • Approx 6 inches of 3/4-inch PVC pipe
  • 3/4″ x 1/2″ PVC reducer
  • (2) 3/4″ PVC end caps (with flat ends)
  • Stainless steel toilet float rod (1/4″ diameter x 10″ long. 1/4-20 threads on each end of the rod)
  • (2) 1/4-20 nuts
  • 1/4″ lock washer
  • Duct tape (optional, for a better fit between the 1/2-inch PVC and the bottom of the pole)
  • A dab of Lock-Tite thread locker

[Note: The PVC pipe I used works with the particular pole I use. If the bottom of your pole has a different inside diameter, you might need to use a different size pipe.]

I joined the two pieces of PVC pipe together with the PVC reducer. Then I glued the two end caps together, back-to-back. Next, I drilled a 1/4-inch hole through the center of the two end caps. I fastened the stainless steel rod with two nuts and a lock washer. I also used a dab of thread locker for good measure. I had to do some sanding on the 3/4-inch pipe to allow the end caps to slide on and off easier. At this point, you might want to put a layer or two of duct tape on the 1/2-inch pipe for a snug fit inside the pole.

The two main assemblies of the antenna ground mount
The two main assemblies of the antenna ground mount
Stainless steel rod bolted through the two back-to-back PVC end caps
Stainless steel rod bolted through the two back-to-back PVC end caps

In the field, I place the end cap assembly on the 3/4-inch pipe and shove the rod into the ground. The pole goes over the 1/2-inch PVC pipe, of course. This places the bottom of the pole about 8 inches above the ground. With lightweight poles, guying is unnecessary. For travel, I flip the end cap assembly around so that the bolt stores inside the pipe. This prevents poking holes in my backpack or bicycle pannier bags.

Antenna ground mount assembled for use
Antenna ground mount assembled for use
Antenna ground mount configured for travel. The stainless steel rod is stored safely inside the PVC pipe assembly.
Antenna ground mount configured for travel. The stainless steel rod is stored safely inside the PVC pipe assembly.

The threads on the end of the stainless steel rod pick up some dirt in use. It’s not a major problem but I might cut the rod off just above the threads. I haven’t decided yet.

That’s all there is to it. I’m hoping the accompanying pictures clarify how I built it.

72, Craig WB3GCK

Adjustable Bungee Cable Ties

This is another one of those little hacks that takes longer to describe than to build. Some time ago, I stumbled on a clever idea online that has been useful in my ham radio activities.

I used to use ball bungee fasteners in a variety of sizes as temporary fasteners. While they are handy, they have limitations for my uses. On occasion, I found that the sizes I had available were either too small or too large for the task at hand.

A year or two back, I found a great video on the MOD YouTube Channel. The video described how to make these simple, adjustable cable ties. I made up a few and found them handy for several ham-related applications.

A completed bungee cable tie, along with one of the two-hole cord locks I used.
A completed bungee cable tie, along with one of the two-hole cord locks I used.

These little devices have a multitude of uses but my main use is for antennas in the field. I use them to fasten a BALUN or UNUN to a telescopic pole for portable verticals.

I also found they are also handy for lashing odd items to the MOLLE loops on my backpack. In a recent post, I showed how I use them to secure a 19-foot telescopic pole to my sling pack.

I use one of the bungee ties to attach the 19-foot vertical matching box to the fiberglass pole.
I use one of the bungee ties to attach my 19-foot vertical matching box to the fiberglass pole.

Of course, they make great cable ties. Their ability to adjust allows them to fit a wide variety of cables.

You only need 2 things to make these: some shock cord and some double hole cord locks. (If you watched the MOD video, you already know all this.)

I use 4mm diameter shock cord most often to make these. For some smaller, light-duty applications, I have used a thinner 2.5mm shock cord. I have found that the cord locks seem to hold better with the larger 4mm shock cord.

Construction is super simple.

  • Cut the shock cord to the desired length. Be sure to singe the cut ends with a lighter to prevent fraying.
  • Put the two ends through the holes in the cord lock.
  • Holding the two ends together, tie a simple overhand knot and snug it down.
  • To use them, place the bungee around whatever you need to fasten. Place the loop end over the cord lock to hold it. Press the button on the cord lock and pull the ends to cinch it down.

That’s all there is to it. In the time it took to write and edit this post, I could have made a ton of these things. It’s not an Earth-shattering thing but sometimes it doesn’t take much to amuse me.

Thanks to MOD YouTube Channel for sharing this great idea.

72, Craig WB3GCK

[Disclaimer: I have no financial interest whatsoever in Amazon or any of these products.]

Links:

Revisiting the Rybakov 806 Vertical

Some recent Internet discussion got me thinking about the Rybakov 806 Vertical antenna. This easy-to-build antenna has served me well over the years. So, I went back and revisited some of the ways I’ve used it.

What the heck is a Rybakov anyway?

The Rybakov 806 Vertical appears to be the brainchild of Enrico IV3SBE from Italy (now 5Z4ES in Kenya). The term, Rybakov, is Russian for “fisherman.” That’s right… It’s an antenna with a Russian name designed by an Italian who lives in Africa — truly an international creation. From what I could glean from exhaustive Internet searches, this design dates back to the mid to late 2000s. I found numerous references to it from 2009.

The classic Rybakov configuration is a 7.6m or 8m (~25 or 26 feet) wire fed through a 4:1 UNUN. The length isn’t critical, as long as you avoid resonance on the bands of interest. It’s often supported by a telescopic fishing pole (hence, the name, “Rybakov”). Being a non-resonant antenna, you need to use an antenna tuner to make it work. You also need to use radials or some other type of ground.

The antenna can cover 80M through 6M (the “806” part of its name, I suppose). The band coverage depends on the wire length used and the capabilities of your tuner. With a 7.6M wire, you can cover 40M and up without problems. For 80M coverage, plan on using a longer radiator.

The only thing you need to build is the 4:1 UNUN. The IW7EHC website provides detailed instructions for building one. Beyond that, you just need to cut some wire to length for the radiator and radials. Easy peasy!

My experience with the Rybakov

I had been using this type of antenna before I even knew it had a name. Rick KC8AON had a version of this type of antenna he called, “The Untenna.” That’s where I found it.

My first experiment with it was in a “stationary mobile” setup. I rigged up a 26-foot vertical wire and grounded the UNUN to the body of my truck. My Z-817 tuner was able to load it up with no difficulty. I had no problem making contacts and I liked the multi-band coverage.

I next used the Rybakov at a Boschveldt QRP Club Field Day. I set up a 26-foot ground-mounted vertical and used about six 16-foot radials with it. Again, the performance seemed decent and I remember doing well on 10M that year. The only shortcoming was that it wouldn’t load up on 80M.

The next year, I solved the 80M problem by using a 50-foot wire in an inverted L configuration. For the ground, I used six 16-foot radials and two 33-foot radials. This configuration gave me full coverage from 80M to 10M and it worked great. This antenna configuration became my “go to” Field Day for several years. In later years, I used a 53-foot radiator.

My typical implementation of the Rybakov 806 antenna. A length of 25 to 27 feet does well from 40M and up. I go with a 53-foot radiator for 80M coverage.
My typical implementation of the Rybakov 806 antenna. A length of 25 to 27 feet does well from 40M and up. I go with a 53-foot radiator for 80M coverage.

I used another version of the Rybakov with the pop-up camper that I used to own. I strapped a 31-foot Jackite pole to the camper and used it to support a 27-foot wire. I grounded the UNUN to the body of the camper. This antenna worked great on 40M to 6M and, best of all, I didn’t need to go outside at night to change bands. I used this antenna with good results for several years until I sold the camper.

I also built a Rybakov that I use as a backup antenna in the field. I built a small 4:1 UNUN that I use with a 26.5-foot radiator and a 26.5-foot radial. The antenna, along with a short length of coax, is easy to carry in my pack.

The bottom line (for me, at least)

I’ve had good luck with the Rybakov Vertical over the years. Is it the best antenna? Nope. Purists will argue about UNUN, ground, and coax mismatch losses. Yep, there are those. Yet, its simplicity and “no gap” band coverage are hard to beat. It’s easy to deploy in the field and it really does work.

If you’re in the market for a simple portable antenna project, the Rybakov 806 is an easy one.

[Update 4/3/2019: I’ve always wondered about the rationale behind the 25-foot radiator often used with the Rybakov antenna. An article in QST [1] by Joe Reisert W1JR shed some light on that for me. Joe’s article discusses the 3/8-wave vertical antenna. According to the article, the 3/8-wave antenna has a low take-off angle and its 200-ohm feedpoint is easily matched with a 4:1 transformer. Its higher radiation impedance provides good performance with just four 1/4-wave radials. For 20M, a 3/8-wave radiator is about 25-ft. Similarly, for 40M, it would be 50-feet. So, my guess is that’s the concept behind the Rybakov design.]

73, Craig WB3GCK

Reference Links:

Reference Articles:

  1. Reisert, Joe W1JR, “The 3/8-Wavelength Vertical — A Hidden Gem,” QST, April 2019, pp. 44-47.

FT-817 Power Connection

I’ve seen a lot of discussion on the Internet lately about the FT-817’s less-than-robust DC power connector. Its miniature coaxial power connector has long been recognized as a failure waiting to happen. I thought I’d chime in with my crude, little hack.

Over the years, users have come up with a variety of ways of dealing with the FT-817’s power connector. If you’re brave enough, you can just hard-wire the power cord directly to the FT-817’s main circuit board and eliminate the connector altogether. You can also buy a really slick adapter that gives you an Anderson Powerpole connector on your FT-817.

When I bought my FT-817 almost 15 years ago, I was immediately leary of the little 4.0 x 1.7 mm power connector; there was no way it was going to hold up in the field. I didn’t know of any commercial options at the time, so I raided my junk box to come up with a solution, albeit a crude one.

The power cord with an Anderson Powerpole connector attached to my FT-817
The power cord with an Anderson Powerpole connector attached to my FT-817

I merely attached a small right angle lug to the FT-817’s ground screw. Then, I used a couple of small nylon cable ties to secure the power cable to the lug and provide some strain relief. I installed Powerpole connectors on the other end of the cable. It’s not pretty but it served the purpose.

Close-up of the right-angle lug attached to the ground stud. Two small nylon tie-wraps secure the power cord to the lug. An unused lug is shown in the bottom of the picture.
Close-up of the right-angle lug attached to the ground stud. Two small nylon tie-wraps secure the power cord to the lug. An unused lug is shown in the bottom of the picture.

Although my FT-817 doesn’t see as much field use as it used to, my stupid-simple hack is still going strong after 15 years. While this approach doesn’t eliminate the FT-817’s little DC connector, it has (so far) survived many years of portable use in the field.

72, Craig WB3GCK

Connecting Two Keys to the KX3

When operating in the field, I often like to alternate between a straight key for SKCC contacts and paddles for everything else. I found a quick and easy way to do this, courtesy of an excellent article by Rich AG6QR.

In the past, I would sometimes run an external keyer and connect a straight key in parallel with the keyer’s output. I have often used this as a way to use both computer keying and paddles during Field Day. I have also resorted to putting the CW KEY1 jack into the straight key mode and turning my Palm Mini paddles on their side to simulate a straight key. I could have used the Elecraft paddles designed for the KX3 but that arrangement isn’t very comfortable for me.

I did some searching and found a neat little adapter on the Pignology website. Unfortunately, at the current time, they aren’t accepting orders. A little more searching produced AG6QR ‘s article, which provided a perfectly workable solution. Best of all, I had everything I needed in my junk box.

Inspired by Rich’s article, I assembled a two-pin, female header connector (with standard 0.1-inch spacing) by crimping on a short length of two-conductor wire. On the other end, I soldered on an in-line 1/8-inch stereo jack. (I connected to the tip and sleeve terminals, leaving the ring terminal open.)

This is the 2-pin female header connector. It’s an Amphenol part but, unfortunately, I don’t have the specific part number.
This is the 2-pin female header connector. It’s an Amphenol part but, unfortunately, I don’t have the specific part number.

After setting the CW KEY2 jack to the “HAND” setting, I connected my header connector to the two right-most pins on the front connector and a straight key to the stereo jack. Voila! It worked just fine. As is my usual practice, I used a little Goop sealant/adhesive to add a little extra strain relief and make the connectors more rugged for field use.

This is the straight key adapter connected to my KX3.
This is the straight key adapter connected to my KX3.

So until Pignology reopens, I have a great (cheap) solution for simultaneously connecting a straight key and paddles. Be sure to check out AG6QR’s page for a more detailed description (and better photography).

72, Craig WB3GCK

Quick End Insulator

Here’s another quick hack that took longer to write up than to actually build. I recently built a portable vertical antenna using some #26 Stealth Wire. I needed some sort of end insulator that would facilitate pruning the wire to resonance. Here’s my quick and dirty solution.

Using scissors, I cut a piece of plastic from a used up gift card I had in my wallet. The piece I cut is about 1 inch by 0.5 inches. Then, I drilled 3 holes in it. Two of the holes were just slightly larger than the #26 Stealth Wire (The Wireman Product #534). These holes hold the wire in place. I drilled a larger hole for attaching to a light line or, in my case, a small clip at the top of my telescopic pole. I also rounded off the corners a bit.

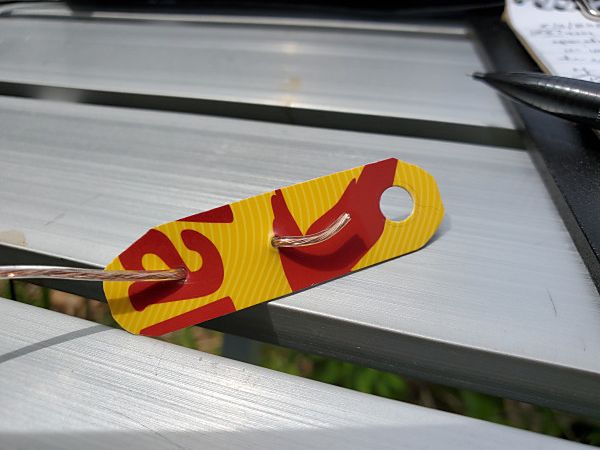

The end insulator and the gift card from which it was cut. (Disclaimer: I have no financial interest in the Wawa company, except that I have consumed untold quantities of their coffee over the years.)
The end insulator and the gift card from which it was cut. (Disclaimer: I have no financial interest in the Wawa company, except that I have consumed untold quantities of their coffee over the years.)

So far, this is working out well for my portable vertical antenna. If I was using heavier gauge wire, I would definitely use something more substantial than the gift card. I also wouldn’t use it for a permanent installation. But for an ultralight antenna that is only used for portable excursions, it’s perfect.

If I ever need to replace it, I have enough of the original gift card left to make a bunch more!

72, Craig WB3GCK

Bike Rack Vertical

[This is an updated version of a post that appears on my old website. – WB3GCK]

I do quite a bit of my QRP operating from portable locations. I like to use simple wire antennas but, truth be told, I really dislike spending my limited operating time trying to get antenna wires up into trees.  Also, when activating parks for Parks on the Air (POTA), I often operate from the cab of my truck and need an antenna that is self-contained and quick to deploy.  This set up fits the bill.

What I did was modify my homebrew roll-on mast support so I could use my hitch-mounted bicycle rack to support it. This only required the drilling of two holes in the roll-on mount. Figure 1 shows the roll-on mount clamped into the bike rack. In this case, I was supporting a 31-foot Jackite pole. After extending the pole and removing the bottom cap, I just lower the pole onto the 1-1/4 inch pipe. That’s all there is to it.

Bike Rack Antenna Mount. A 9:1 unun is attached to the Jackite pole with a bungee cord.
Bike Rack Antenna Mount. A 9:1 unun is attached to the Jackite pole with a bungee cord.

By selecting the right size of pipe, I can use this technique to support a variety of masts. For example, I’ve used this type of mount to support two 5-foot sections of TV antenna mast. I used this configuration to support a 1.2 GHz yagi for DStar digital communications during an ARES-RACES drill years back.

My new truck's first QRP-portable outing.
The Bike Rack Vertical in use

When operating QRP-portable, I often use a vertical antenna made from a 30-foot piece of hook-up wire and fed through a homebrew 9:1 unun with an 18-foot length of RG-8x coax. The unun is just attached to the 31-foot Jackite pole using some small bungee cords. No radials are used, which gives this set-up virtually a zero footprint. You can find more information on this configuration on the EARCHI website. I’ve successfully used this antenna in the field over the past few years. It’s a bit of a compromise, as antennas go, but it has always served me well. The extra height using the bike rack mount seems to help performance a bit. (Although I can’t quantify that, I’m sure the extra height doesn’t hurt.) With the internal antenna tuner in my KX3, I can work all bands from 40 through 10 meters.  Heck, I’ve even used it on 80 meters a bunch of times.

I used this particular antenna configuration countless times in recent years.  It was my “go to” antenna for NPOTA activations.  Within 5 minutes of arrival, I can be on the air. When it’s time to leave, tear down is just as fast. Now, that’s what I’m talkin’ about!

73, Craig WB3GCK
